1. Strong Adaptability: Suitable for a variety of complex working conditions, such as gas-oil separation and solid-liquid separation, and performs excellently in scenarios with high flow rates or limited space.
2. High Separation Efficiency: The high-efficiency separator can effectively separate gases, liquids, and solids through mechanisms such as gravitational sedimentation and collision separation.
3. Stable Operation: The special structural design ensures more stable operation and more convenient maintenance and management.

Two-Phase Separator: After the gas-liquid mixture enters the separator, the gas enters the gas channel and gets separated into liquid droplets based on gravity and sedimentation, while the liquid enters the liquid space and gets separated into bubbles and solid impurities. Before leaving the separator, the gas passes through a mist eliminator to remove small droplets and then exits through the gas outlet, while the liquid exits through the liquid outlet.

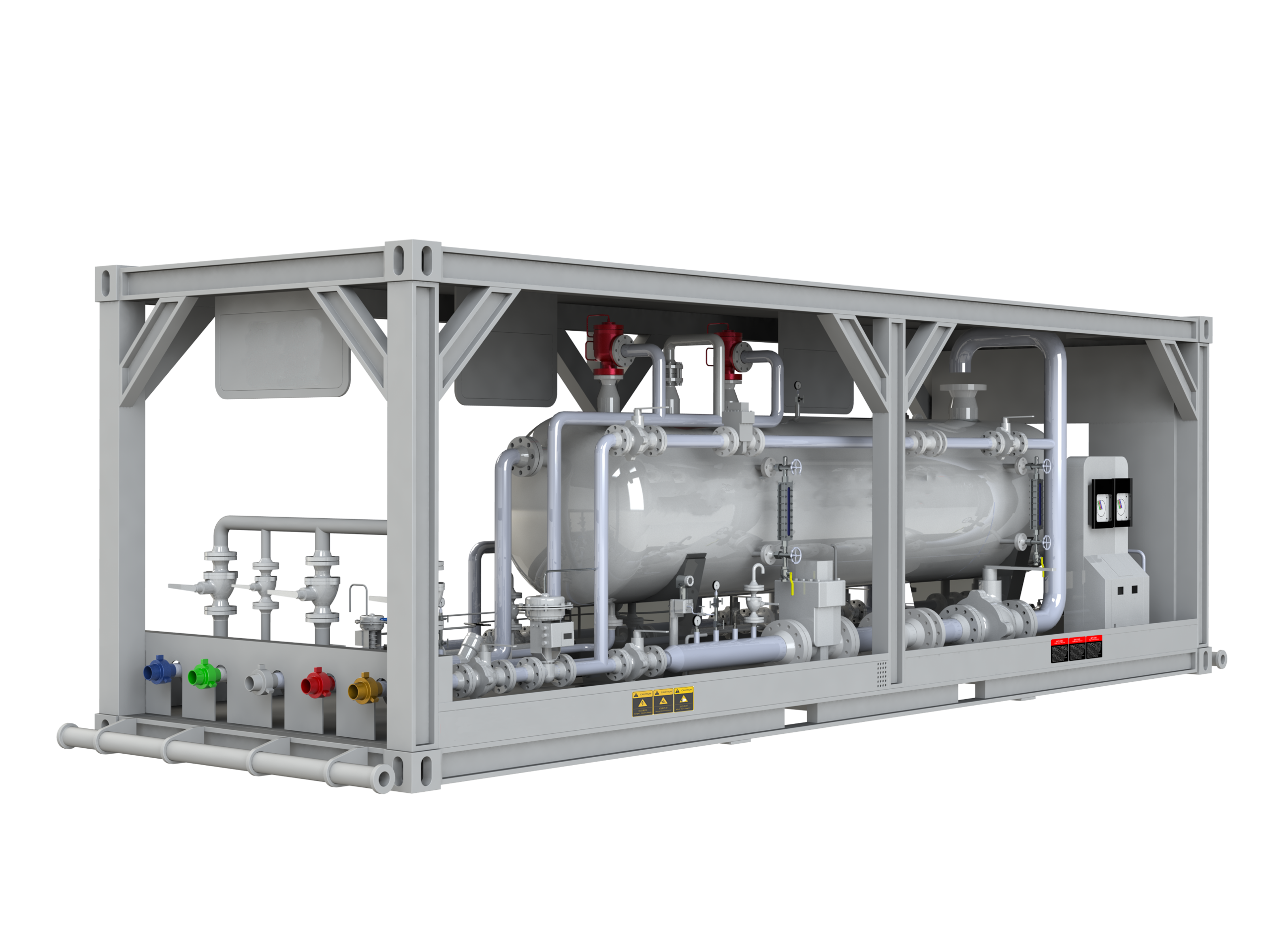

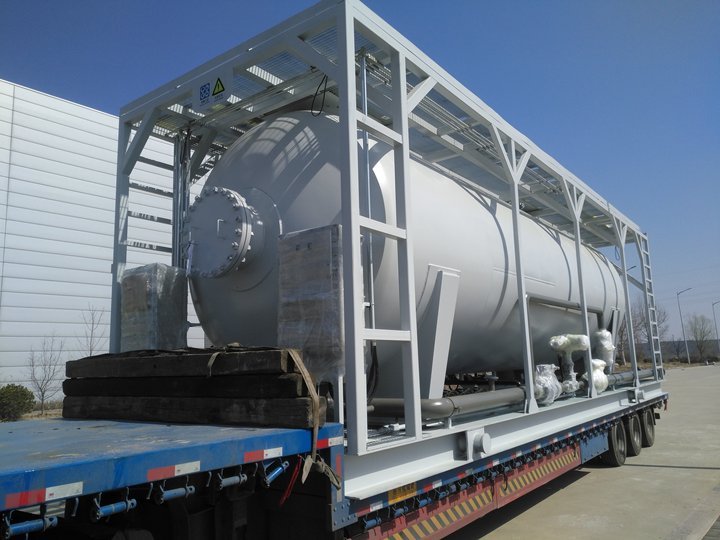

Three-Phase Separator: After the gas-liquid mixture enters the separator, it first undergoes preliminary separation through the inlet distributor. The gas enters the separation chamber, where small droplets coalesce and fall after multiple changes in the direction of flow. The liquid settles under the force of gravity, with oil flowing upwards and water flowing downwards to achieve oil-water separation. Ultimately, the gas is discharged from the gas outlet, the oil flows over the overflow weir into the oil sump and exits through the oil outlet, and the water is discharged through the water outlet.

One-year warranty. A professional after-sales team provides installation and training services

Shandong Shengzhe Petroleum Equipment Co., Ltd. is located in the Shengli Oilfield in Dongying City, Shandong Province, China, where the Yellow River enters the ocean. Founded in 2013, our company has a registered capital of 60 million Yuan and a covering area of 16985.17 ㎡. We are pushing the limits of special petroleum equipment by advancing research and development, and integrating production, sales, and technical consulting.

The main products we offer are: Multi-parameter metering device of mobile oil well, Multi-parameter metering device of crude oil wellhead, Multi-parameter metering device of oil well in metering room, Unit / branch line multi-parameter metering device, Gas metering device for oil and gas wells, Automatic Water Injection Device, Intelligent Medicine Feeder, Controlled inverter energy saving system of oil well group, Hitch Valve Block Skid, Wellhead Connection Skid, etc. At present, the products have obtained multiple certifications such as ISO9001 Quality, ISO14001 environment, OHSAS18001 occupational health management system etc.
